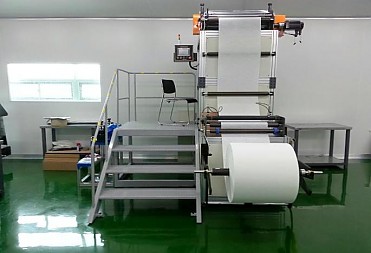

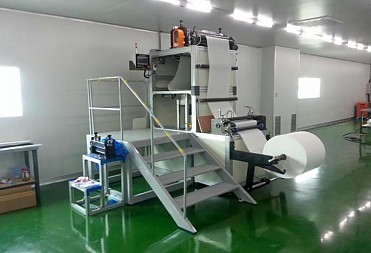

Cell Type Pleating Machine

Pleating high pitches of glass fiber for filter pack production
image view

Specification

Use Pleating Cell Type Filter Materials
Control System PLC + Touch Screen
Media Glass Fibers
Electricity 380V/220V* 60(50)HZ* 3P(4P)
Air Pressure 6 kgf/㎠ (85 PSI)
Roller Type Blade Replacement [4 mm/8 mm]
Model No. Available Media Width Available Pleat Height Operation Speed Input Power
SCP0800NNS 750 mm 100-310 mm 20 m/min 2.15 kW

Features

  • PLC & Touch Screen Control
  • Adjustable Pleat Heights by Servo Control System
  • Replacing Scoring Roller Blades to change Thickness of Pleat Pitch for Separator Insertion [4 mm//8 mm]
  • Auto Marking System
  • Media Roll fixed by Air Shaft
  • Air Lift System for Media Stand
