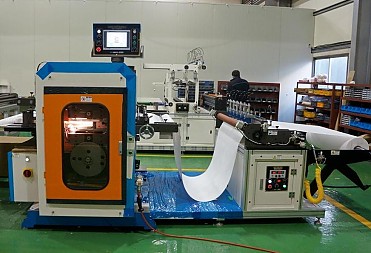

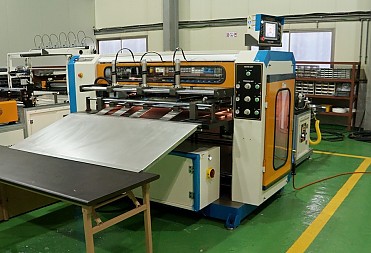

Knife Type Pleat Machine

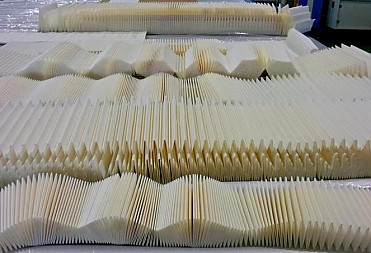

Knife typed pleating of filter materials for air & liquid filter production
image view

Specification

Use Pleating all sorts of filter materials
Control System PLC + Touch Screen
Media Cellulose/Paper, Non-woven, Synthetic Fibers, etc.
Electricity 380V/220V* 60(50)HZ* 3P(4P)
Air Pressure 6 kgf/㎠
Slitting Cutter Quantity 4 set
Model No. Available Media Width Available Pleat Height Operation Speed Input Power
SKP0700LBS 650 mm 7-50 mm 120-150 pleats/min 14.35 kW
SKP0700HBS 650 mm 15-100 mm 100-120 pleats/min 14.35 kW
SKP1000LBS 950 mm 7-50 mm 120-150 pleats/min 17.35 kW
SKP1000HBS 950 mm 15-100 mm 100-120 pleats/min 17.35 kW
SKP1300LBS 1250 mm 7-50 mm 120-150 pleats/min 24.55 kW
SKP1300HBS 1250 mm 15-100 mm 100-120 pleats/min 24.55 kW
SKP1550LBS 1500 mm 10-50 mm 100 pleats/min 27.75 kW
SKP1550HBS 1500 mm 15-100 mm 80 pleats/min 27.75 kW
SKP1700LBS 1650 mm 10-50 mm 100 pleats/min 29.35 kW
SKP1700HBS 1650 mm 15-100 mm 80 pleats/min 29.35 kW
SKP2100LBS 2050 mm 10-50 mm 100 pleats/min 31.35 kW
SKP2100HBS 2050 mm 15-100 mm 80 pleats/min 31.35 kW

Features

  • PLC & Touch Screen Control
  • 2 Servo System: Adjustable Pleat & Heater Height
  • 4 Cam Driving: Multi-Pleating (Up to 10 layers)
  • Auto Marking System
  • Pre & Post Heater

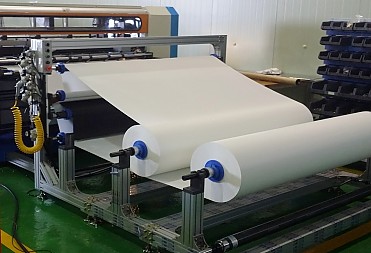

  • Media Roll fixed by Air Shaft
  • Air Lift System for Media Roll Mount
  • Media Tension controlled by Powder Brake & Tension Controller
  • Inverter Control System for Operation Speed
  • Air Cylinder Type Slitting Cutters: 4 EA Included
  • Pre & Post Heaters with PID Controller
  • 3 Divisions of Temperature Control: Fine Adjustment of Pleat Conditions
  • Reliable After-Treatment: Teflon, Anodizing, Chrome Coating, QPQ Heat Treatment, etc.
  • Auto Slitting Machine: Option
