PRODUCTS

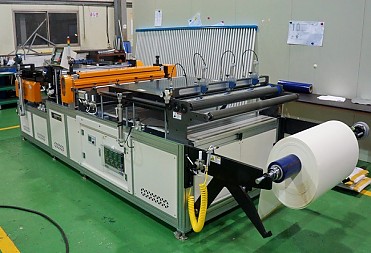

Rotary Pleat Machine

Pleating paper/cellulose, non-woven, etc. in various formations (straight/pleat lock/embossing) using scoring roller
image view

Specification

Use Pleating & Forming various Filter Materials (Pleat Lock, Embossing)
Control System PLC + Touch Screen
Media Cellulose/Paper, Non-woven, & Synthetic Fibers
Electricity 380V/220V *60(50)HZ *3P(4P)
Air Pressure 6 kgf/㎠
Slitting Cutter Quantity 4 set
Model No. Available Media Width Available Pleat Height Operation Seepd Input Power
SRP0500NNS 450 mm 8-50 mm 50 m/min 13.00 kW
SRP0700NNS 650 mm 8-50 mm 50 m/min 14.45 kW
SRP1000NNS 950 mm 10-50 mm 50 m/min 14.65 kW
SRP1300NNS 1250 mm 10-50 mm 50 m/min 20.80 kW

Features

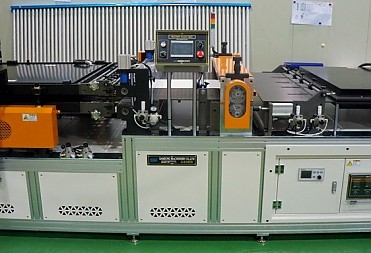

  • PLC & Touch Screen Control

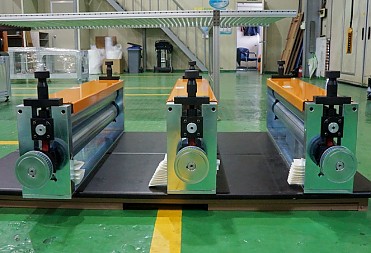

  • Scoring Roller Replacement Type: Straight, Pleat Loc, Embossing Filter Pack Production
  • Scoring Roller Replacement Easiness: Slide/Locking System
  • Auto Marking System
  • Pre & Post Heater
  • Media Roll fixed by Air Shaft
  • Air Lift System for Media Roll Mount
  • Media Tension controlled by Powder Brake and Tension Controller
  • Inverter Control System for Operation Speed
  • Air Cylinder Type Slitting Cutters: 4 EA Included
  • Pre & Post Heaters with PID Controller
  • Reliable After-Treatment: Teflon, Anodizing, Chrome Coating, QPQ Heat Treatment, etc.
  • Adjustable Pleat Pitch for Slitting Machine: Option
  • Scrap Winder: Option
