PRODUCTS

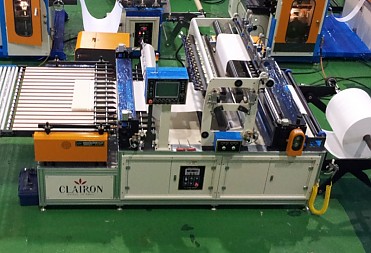

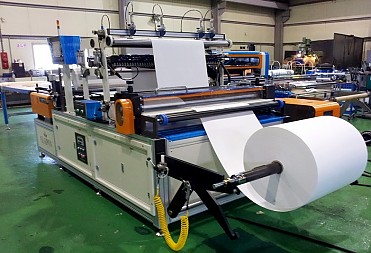

Mini Pleat Machine

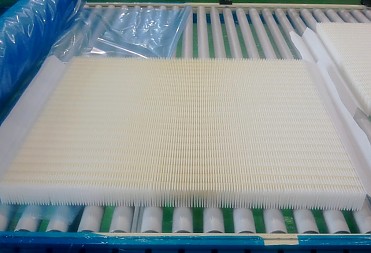

Pleating and Hotmelt dispensing on glass fiber for HEPA/ULPA filter pack production
image view

Specification

Use Pleating & Hotmelt dispensing on filter materials
Control System PLC + Touch Screen
Media Glass Fiber
Electricity 380V/220V* 60(50)HZ* 3P(4P)
Air Pressure 6 kgf/㎠
Slitting Cutter Quantity 4 set
Model No. Available
Media Width		 Available Pleat Height Operation Speed Input Power Hotmelt Applicator

Tank

Volume

 Auto Gun Quantity Temperature
SMP0700NNS 650 mm 22-100 mm 15-18 m/min 29.90 kW 70kg * 2 52 unit 30-230 ℃
SMP1000NNS 950 mm 22-100 mm 15-18 m/min 31.90 kW 70kg * 2 76 unit 30-230 ℃
SMP1300NNS 1250 mm 22-100 mm 15-18 m/min 37.70 kW 70kg * 2 100 unit 30-230 ℃
SMP1550NNS 1500 mm 28-100 mm 15-18 m/min 39.90 kW 70kg * 2 120 unit 30-230 ℃

Features

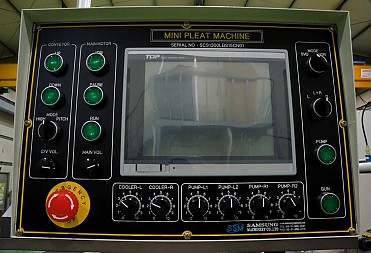

  • PLC & Touch Screen Control
  • Soft Scoring Roller System: Increasing filter packs quality, No damage to the media/blades (Reduce huge scrap), Extending machine life, Reducing noise & vibration, Easy maintenance
  • Anti media cut system for glass fiber pleating
  • Free adjustments of Hotmelt beads pattern/position/length
  • Media Roll fixed by Air Shaft
  • Air Lift System for Media Roll Mount
  • Media Tension controlled by Powder Brake and Tension Controller
  • Inverter Control System for Operation Speed
  • Air Cylinder Type Slitting Cutters: 4EA Included
  • Individual Hotmelt Module on/off Control
  • Outlet Cooling System
  • Outlet Roller Conveyor (3m)
  • Adjustable Pleat Pitch (PPI): 4-8 PPI
  • Reliable After-Treatment: Teflon, Anodizing, Chrome coating, QPQ heat treatment, etc.
